The 257 is the latest design from Monaro Marine. Many hours of thought, design and discussions with customers went into this boat to create something we are quite proud of.
The dash has been completely redesigned to integrate the optional electronics display and vhf. With this design the pilot can focus better on the water without reaching far for buttons or taking your eyes too far from the waters ahead. Being that this dash is larger than it's predessesor there is more room behind for wiring and fuse panels making it easier for servicing. Another great feature is the charcoal finished color, producing less glare.
The stern has been reshaped to create an updated look, more freeboard for safety, and more floor space inside the cockpit. The back panel has been raised up to meet the top of the deck and extra padding has been added making the stern seating more comfortable.
Also in the stern area the swim grid has been redesigned to integrate it into the hull. Fibreglass extensions have been added to the hull forward of the swim grid in order to wrap the rub rail around the perimeter of the grid and forward into the hull.
Hull graphics have been redesigned to make this boat stand out from other models. The all new interior upholstery has been taylored to create a totally new and exciting look for a Monaro.
Photo Gallery
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

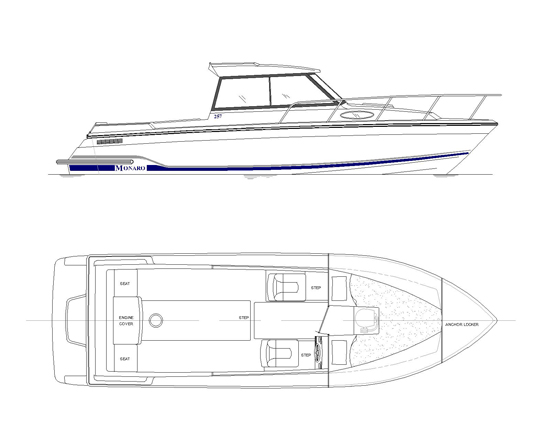

Line Drawings
Specifications
| Hull Length | 24'11" | 7.59 m |
| Overall Length | 25'10" | 8.10 m |
| Beam | 8'0" | 2.44 m |
| Draft to Keel | 20" | 0.51 m |
| Draft: Drive Down | 38" | 0.97 m |
| Deadrise Aft | 20 deg. | 20 deg. |
| Approx. Dry Weight | 4200 lbs. | 1,905 kg |
| Std. Fuel Tank | 45 imp. gal. | 205 l |
| Std. Water Tank | 8 imp. gal. | 36.4 l |
| Holding Tank | 7 imp. gal. | 31.8 l |
| Std. Engine | Volvo 5.0SX 270 hp | 201 kW |
| Min. Headroom in Cockpit | 6'5" | 1.96 m |
| Max. Headroom in Cockpit | 7'3" | 2.21 m |
| V-berth Length | 6'5" | 1.96 m |
Standard Equipment and Features
- 5 year structural waranty on hull.
- Vinylester resin skin coat in the hull layup to guard against water permeation.
- All hand laid fibreglass in hull, deck and all other fibreglass parts.
- Redesigned stern providing more freeboard and cockpit space.
- Redesigned swim grid with wrap around rubrail extending into the hull.
- Redesigned dash to allow electronics display front and center.
- Special three toned vinyl upholstery with higher upholstered back panel
- Special hull graphics.
- Full Faria instrumentation including speedo and outdrive trim indicator.
- Foam in cavity under floor.
- Generous storage below berth.
- Large opening hatch in cuddy for access and ventilation.
- Large chain and rope locker forward.
- Spacious shelves in cuddy.
- White Formica on the cuddy bulkhead.
- Very high visibility from helm.
- Wide side decks with hand rails on hard top for safe access to forward deck.
- Dual windshield wipers.
- Hard top fixed to windshield to keep rain and spray out.
- Extended hard top for more comfort.
- Full length and higher windshield for increased headroom and visibility.
- Marine head.
- Custom fit camper back canvas in choice of color.
- Welded one piece bow rail bolted through the deck.
- Two custom upholstered helm seats mounted on 24" fibreglass cabinets.
- Port helm seat hinges up to provide counter space.
- Large storage pockets in cockpit.
- Storage pocket next to passenger seat.
With every Monaro purchase, new or used, we will provide the owner with factory technical support for as long as you own the boat.
Option List
Every model has an extensive list of optional equipment available. If there is something you are looking for and don't see it on the list, ask us. It can probably be added. Engine options include gas or diesel stern drive or outboard. Full option list coming soon.
